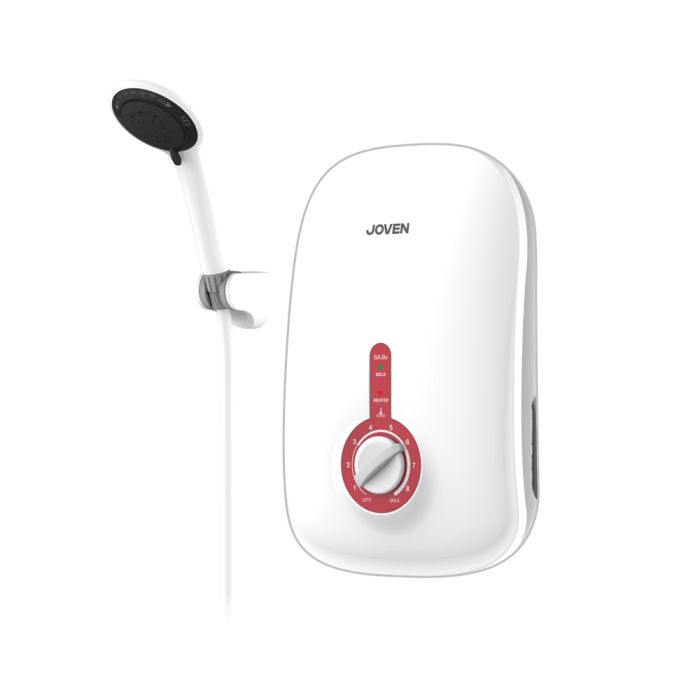

The SA8 Series is designed to complement with a compact and slim design, perfect for the minimalist bathroom that lasts for years to come.
High Performance Fast Heating3.6kW Power
Water is heated instantly from cool to hot with no waiting time required.

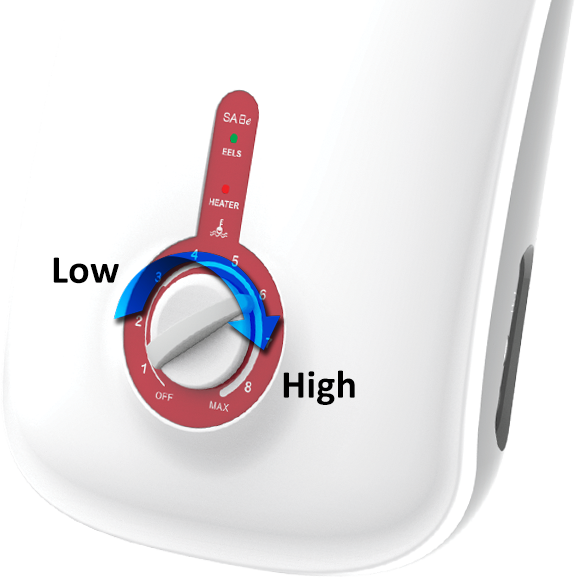

Adjust to the Temperature You Desire Stepless Electronic Power Control System
Turn the knob to your desired temperature setting with our Stepless Electronic Power Control System for smooth temperature settings.
Cleaner Water with 99.99% Anti-bacterial Swirl Heating System & Filter
Get healthier skin with the 99.99% Anti-bacterial Swirl Heating System & Pre-Filter that traps rough sediments in your shower.
SAFETY FEATURES

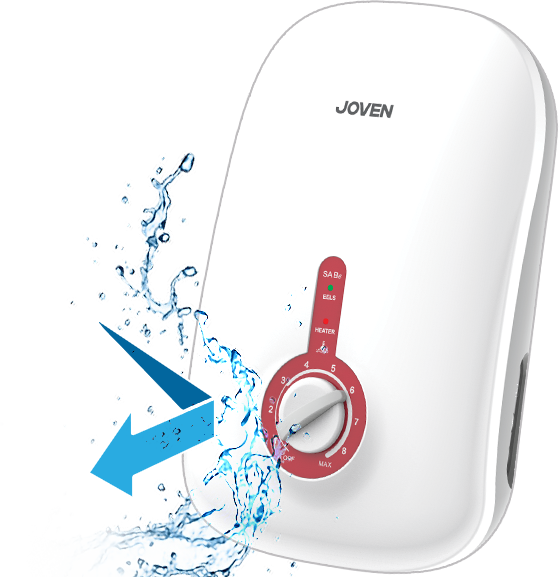

High Protection Against Water Splash Comply with IEC 60529 (IP25) Standard
The casing is sealed to prevent water from accessing the internal parts in-line with IP25 splash proof standard.

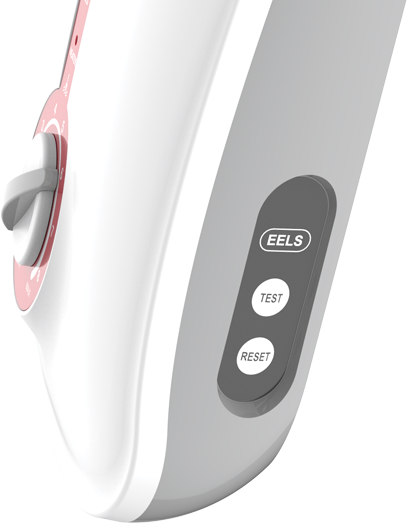

Enhanced Protection Against Current Leakage Double Poles EELS | <10mA Standard
Your safety are assured with the industry’s safest Double Poles EELS which is 10mA sensitivity that cuts off current both live and neutral line at high speed with detection of any current leakage above 10mA.

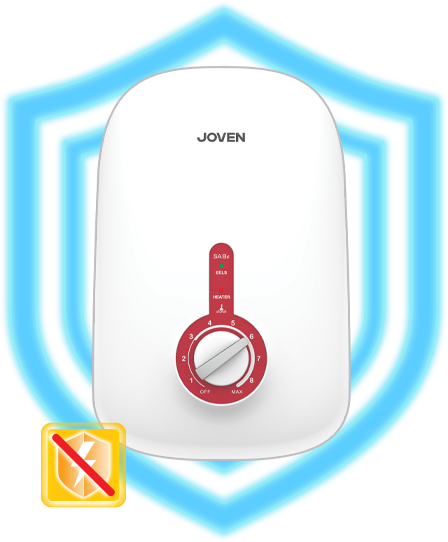

Surge Protector Comply with IEC 61000-4-5 (Level 3)
Protection against power surge which disconnects the power instantly. In the event of a power surge, the surge protector will disconnect the power instantly.
Anti-Scalding Technology
Your safety assured with Anti-Scalding Technology.
Durable Copper Heating Element
Reliable, high performance and efficient Copper Heating Element for instantaneous hot water.
.

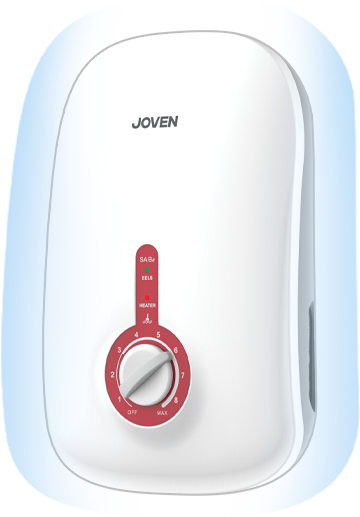

Thermal Cut-Out Technology
This safety device will interrupt power supply in the event of overheating and prevent fire hazard.
Nylon Fibre Tank With Swirl Technology
Swirl technology minimises thermal shock and prevent scalding. Nylon Fibre tank insulated structure ensures better heat insulation and ensures user safety.

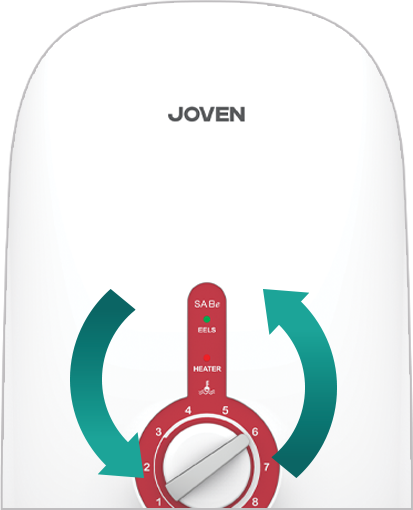

SFS Technology
The Safety Flow Sensor (SFS) ensures sufficient flow of water before the heater activates to prevent scalding.
Triple Reinforced & Insulated Hose
5” length 3 Layer Reinforced and Insulated Hose for longer reliability and non-conductive material for better heat insulation and prevent electric shock.

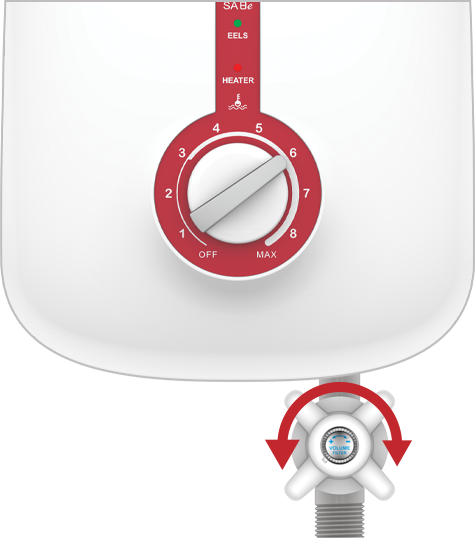

SVF Valve with Built-In Filter
Turn On/Off the water with the 1/4 turn pattern pending SVF Valve with water saving feature and easy clean with built-in filter.
ACCESSORIES

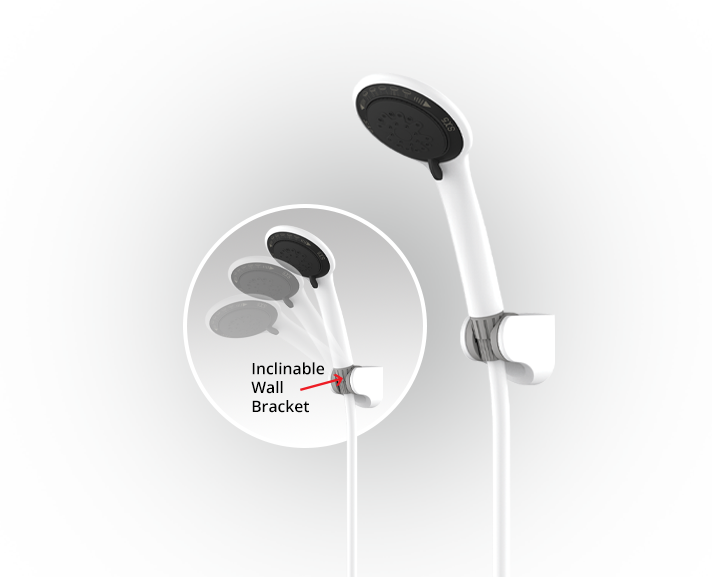

Inclinable Wall Bracket With Triple Reinforced Non-Conductive Hose
The wall bracket enables easy adjustment of your desired shower angle. The hose material is reinforced with triple layer for longer durability, safety & hygiene with 5 feet length for your comfort.
5 Spray Showerhead
Shower in extra comfort with the 3.8” showerhead and 5 Spray Options.
Instruction Manual
Local language included
Warranty Card
Local product warranty included
Screw and Wall Plug
5 sets to mount unit on the wall
Washer
2 pieces to be placed at inlet and outlet as water tight seal
Filter Cup
1 piece to be placed at hand shower entry as water tight seal and filter action

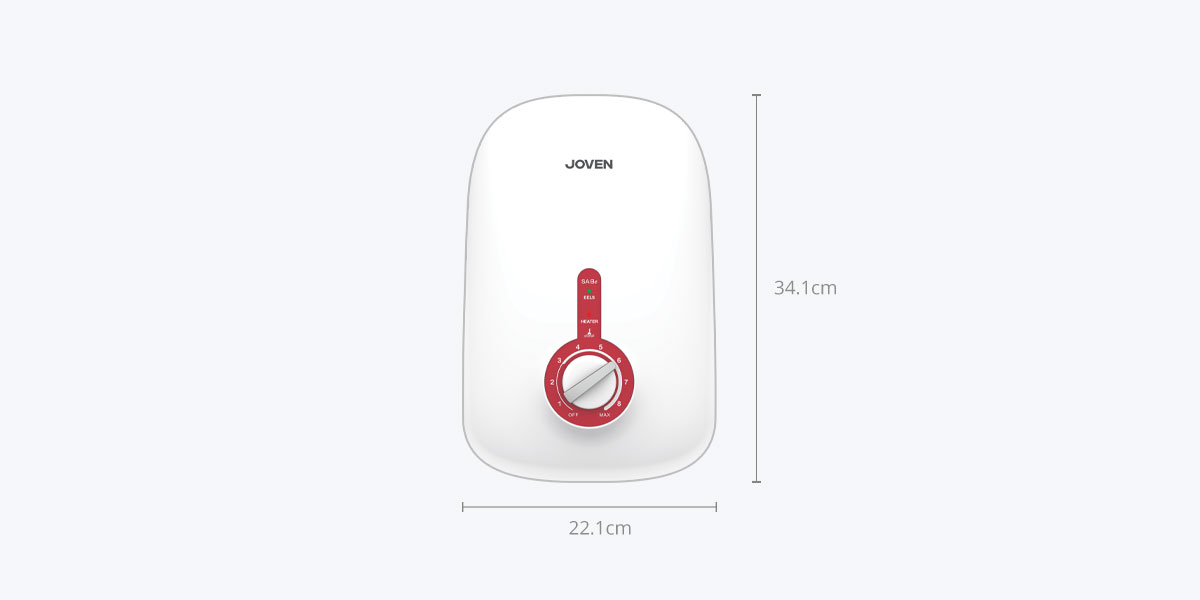

TECHNICAL SPECIFICATION
Electrical Loading
3.6kW 15.0A 240Va.c. 50Hz
Min. Water Pressure
10kPa / 1.45psi / 0.1 bar
Max. Water Pressure
380kPa / 55psi / 3.8 bar
Min. Water Flow
2 Litres per minute
Max. Water Flow
8 Litres per minute
Water Temp. Control
Stepless Electronic Power Control
Inlet/Outlet Connection
Ø15mm (1/2” BSP) – Single Point System
