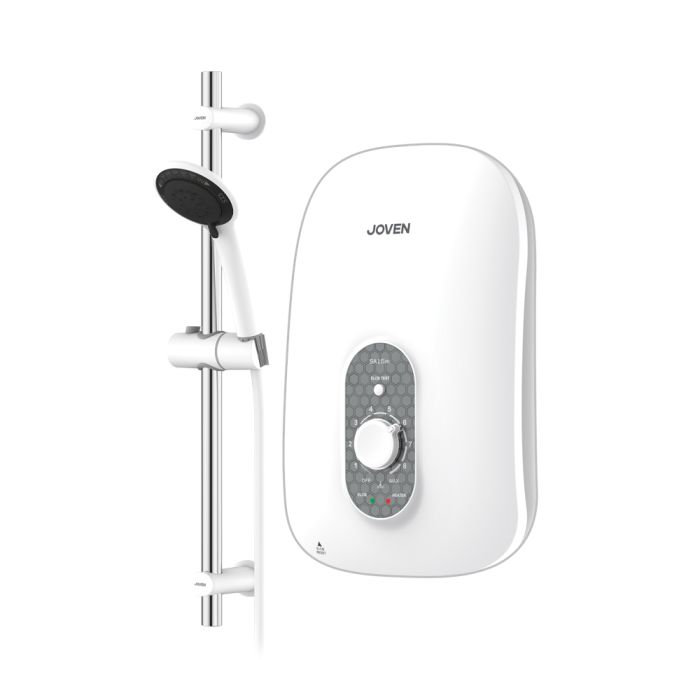

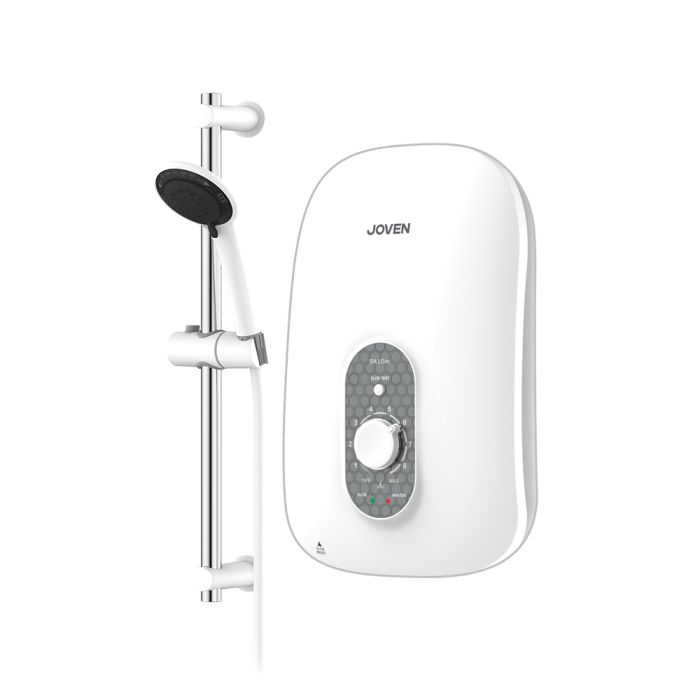

SA15m Instant Water Heater

SKU
5111901001
In stock

Innovative Features

  • Sleek and Stylish Casing
  • Stepless Electronic Power Control
  • 3.6kW 240V
  • Antibacterial Heating Technology

Accessories

  • 5 Spray Showerhead
  • Slim Slide Bar
  • Durable, Safe and Hygienic Triple Reinforced Non-Conductive Hose
  • ¼ Turn Valve for On/Off Shower

9 Safety Features

  • Thermostat with Safety Cut-Out
  • Double Poles ELCB System with 10mA sensitivity
  • Splash Proof IP25 Casing
  • Anti-Scalding Technology
  • Nylon Fiber Tank with Swirl Technology
  • SFS Technology
  • Durable Copper Heating Element
  • Triple Reinforced & Insulated Hose
  • SVF Valve With Built-In Filter
Show More
Available from:

INNOVATIVE FEATURES

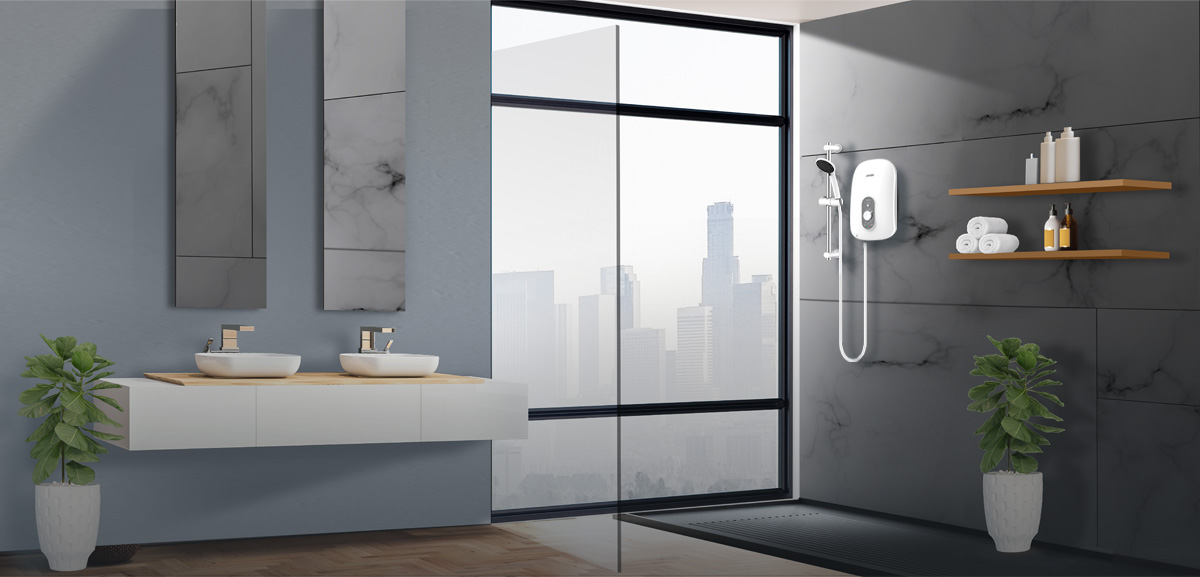

Compact & Crafted For Perfection

The SA15 Series is designed to complement with a compact and slim design, perfect for the minimalist bathroom that lasts for years to come.

Joven

High Performance Fast Heating3.6kW Power

Water is heated instantly from cool to hot with no waiting time required.

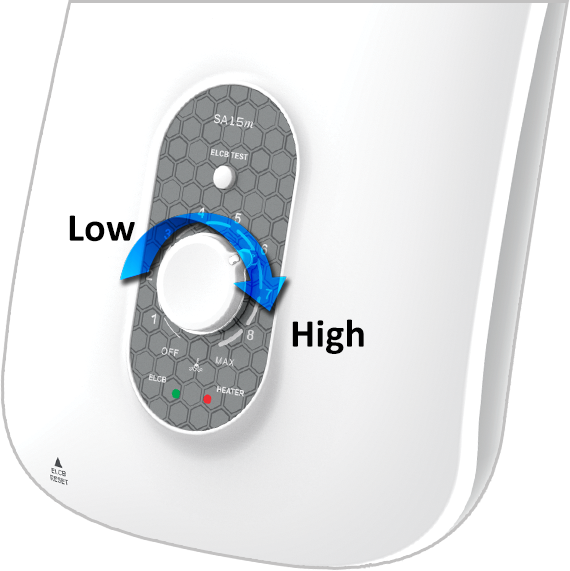

Adjust to the Temperature You Desire Stepless Electronic Power Control System

Turn the knob to your desired temperature setting with our Stepless Electronic Power Control System for smooth temperature settings.

Joven

Cleaner Water with 99.99% Anti-bacterial Swirl Heating System & Filter

Get healthier skin with the 99.99% Anti-bacterial Swirl Heating System & Pre-Filter that traps rough sediments in your shower.

SAFETY FEATURES

Joven

High Protection Against Water Splash Comply with IEC 60529 (IP25) Standard

The casing is sealed to prevent water from accessing the internal parts in-line with IP25 splash proof standard.

Joven

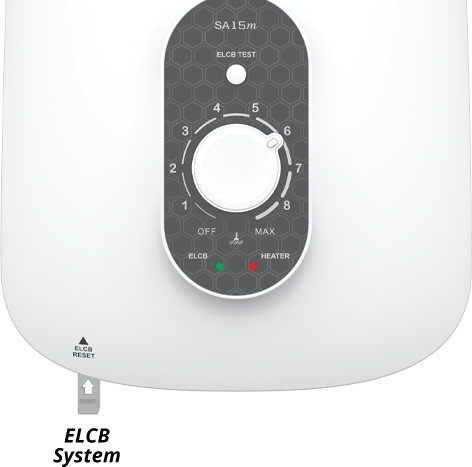

Enhanced Protection Against Current Leakage Double Poles ELCB | <10mA Standard

Your safety are assured with the industry’s safest Double Poles ELCB which is 10mA sensitivity that cuts off current both live and neutral line at high speed with detection of any current leakage above 10mA.

Joven

Anti-Scalding Technology

Your safety assured with Anti-Scalding Technology.

Joven

Durable Copper Heating Element

Reliable, high performance and efficient Copper Heating Element for instantaneous hot water.

.

Joven

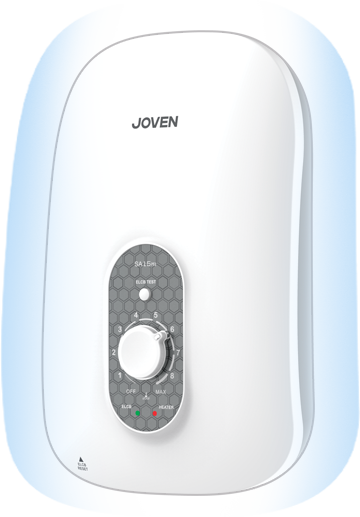

Thermal Cut-Out Technology

This safety device will interrupt power supply in the event of overheating and prevent fire hazard.

Joven

Nylon Fibre Tank With Swirl Technology

Swirl technology minimises thermal shock and prevent scalding. Nylon Fibre tank insulated structure ensures better heat insulation and ensures user safety.

Joven

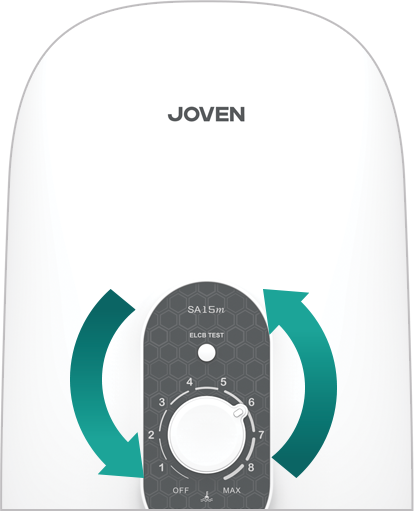

SFS Technology

The Safety Flow Sensor (SFS) ensures sufficient flow of water before the heater activates to prevent scalding.

Joven

Triple Reinforced & Insulated Hose

5” length 3 Layer Reinforced and Insulated Hose for longer reliability and non-conductive material for better heat insulation and prevent electric shock.

Joven

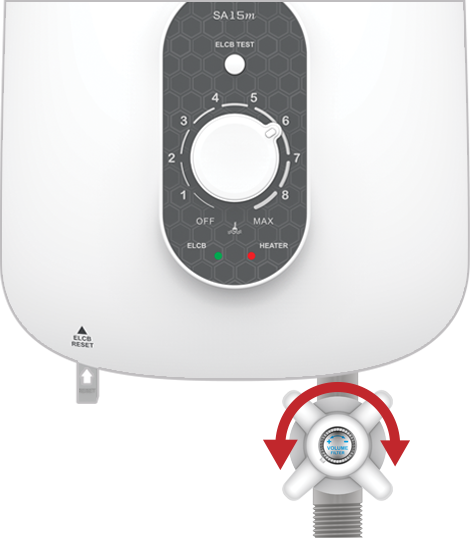

SVF Valve with Built-In Filter

Turn On/Off the water with the 1/4 turn pattern pending SVF Valve with water saving feature and easy clean with built-in filter.

ACCESSORIES

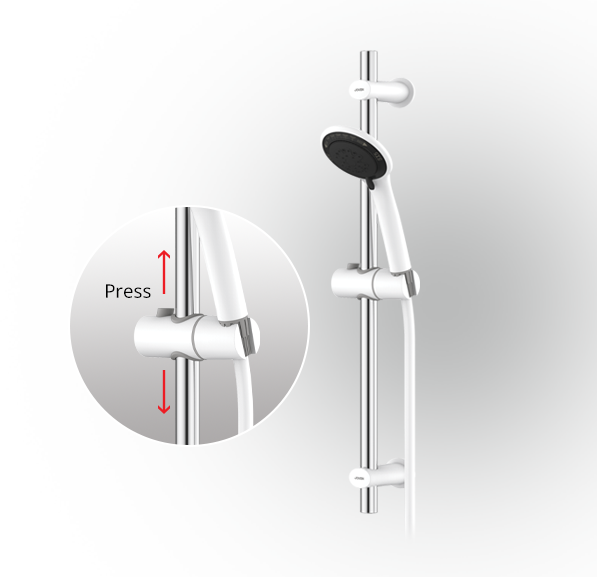

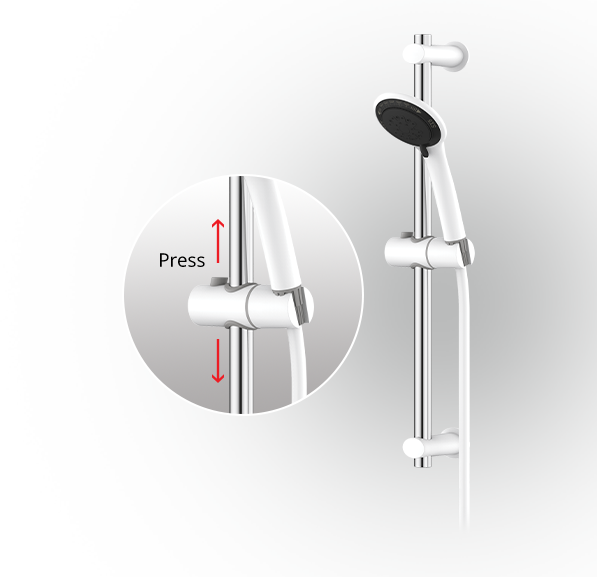

Slim Slider Bar Set With Triple Reinforced Non-Conductive Hose

Adjust your showerhead to the height you desire for maximum comfort. The hose material is reinforced with triple layer for longer durability, safety & hygiene with 5 feet length for your comfort.

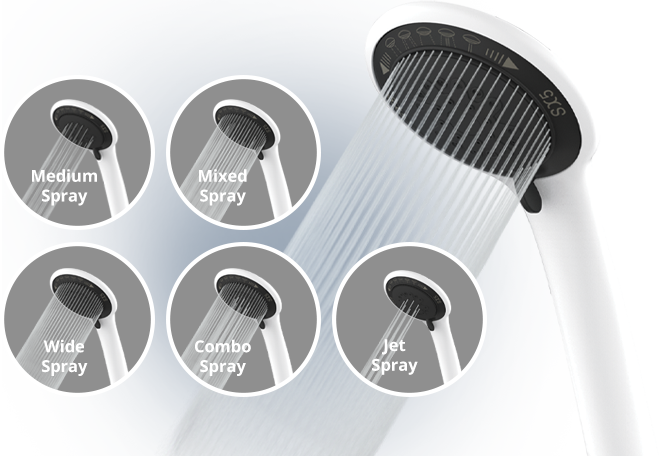

5 Spray Showerhead

Shower in extra comfort with the 3.8” showerhead and 5 Spray Options.

Joven

Instruction Manual

Local language included

Joven

Warranty Card

Local product warranty included

Joven

Screw and Wall Plug

5 sets to mount unit on the wall

Joven

Washer

2 pieces to be placed at inlet and outlet as water tight seal

Joven

Filter Cup

1 piece to be placed at hand shower entry as water tight seal and filter action

TECHNICAL SPECIFICATION

  • Electrical Loading
    3.6kw 15.0A 240Va.c. 50Hz
  • Min. Water Pressure
    10kPa / 1.45psi / 0.1 bar
  • Max. Water Pressure
    380kPa / 55psi / 3.8 bar
  • Min. Water Flow
    2 Litres per minute
  • Max. Water Flow
    8 Litres per minute
  • Water Temp. Control
    Stepless Electronic Power Control
  • Inlet/Outlet Connection
    Ø15mm (1/2” BSP) – Single Point System

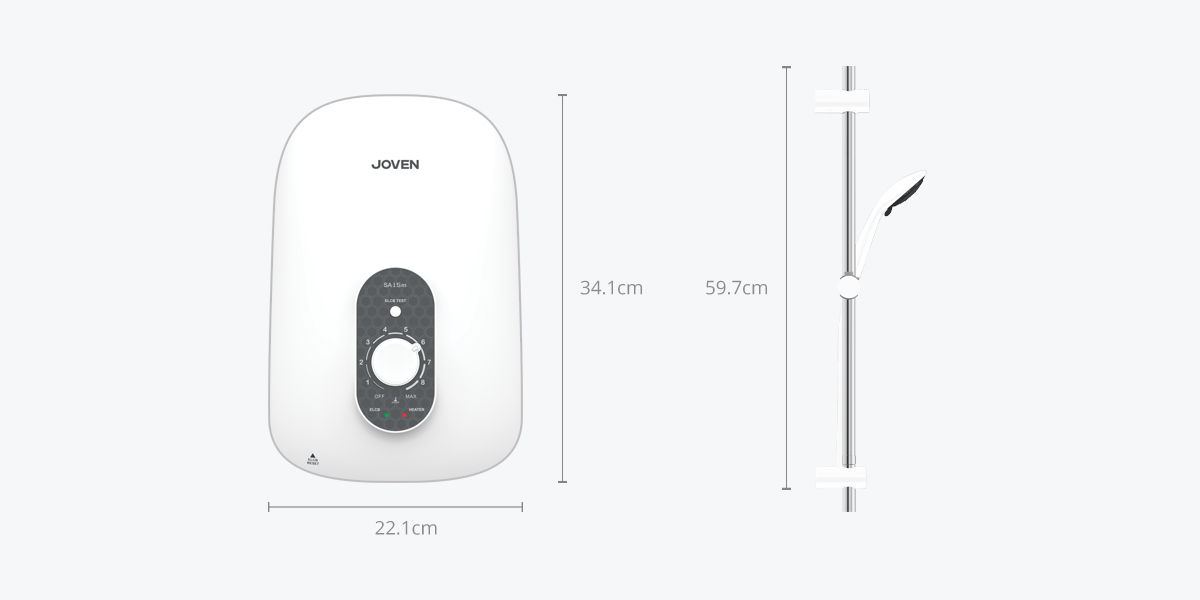

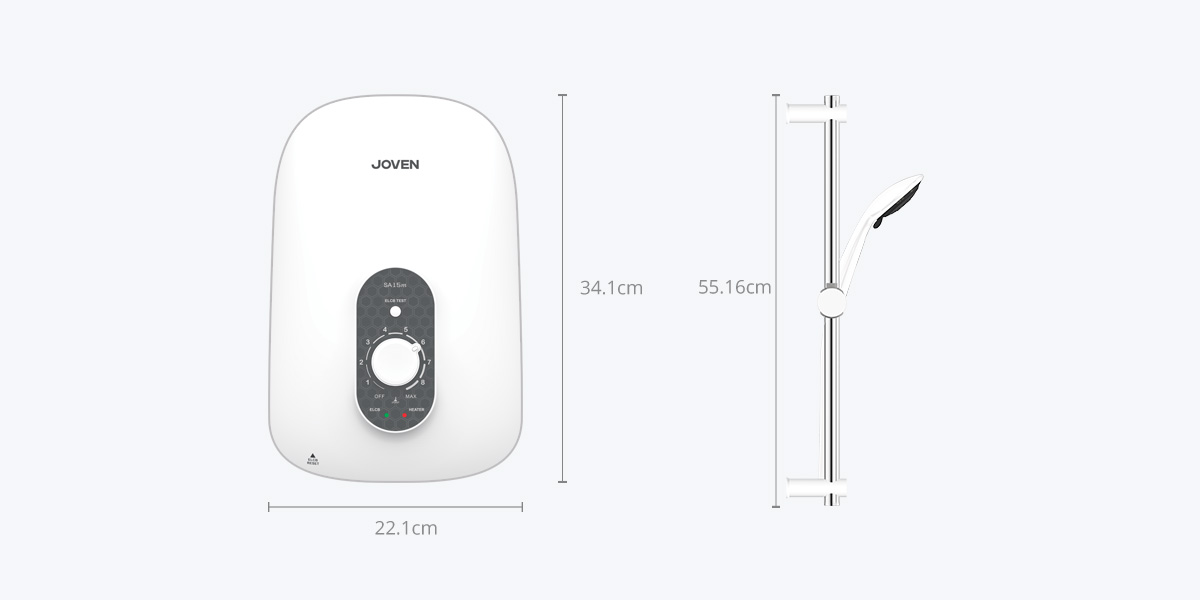

  • Dimensions
    221 x 341 x 89 mm
  • Weight
    2.5kg
